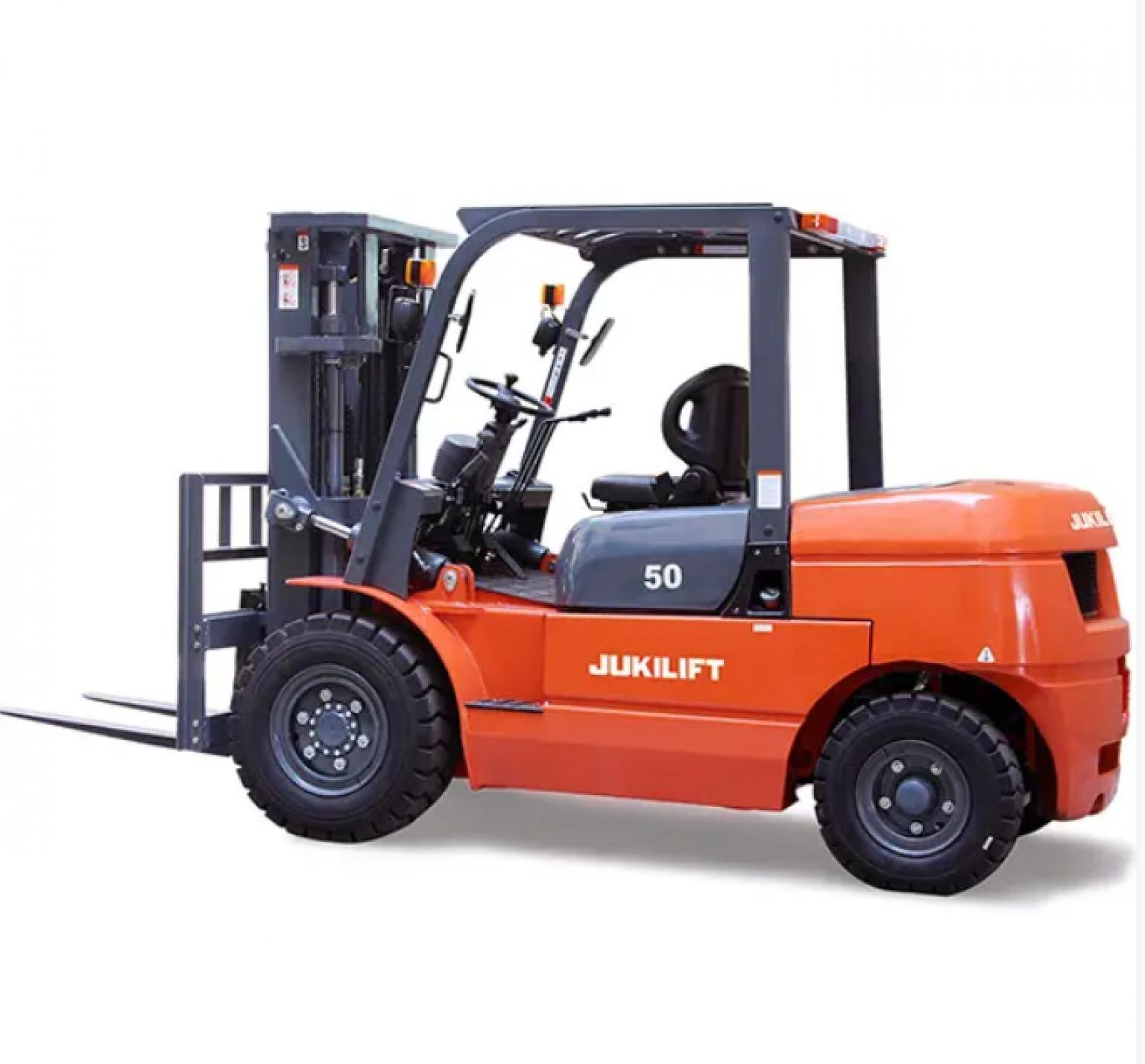

5t capacity; (4.0Ton-5Ton available)

Loading Center: 500mm

Lifting Height :Wide View Full Free 2-Stage 2500mm-4000mm

Wide View Full Free 3-Stage 3700mm-6000mm
Engine：Chinese Quanchai 4C6;

Japanese ISUZU 6BG1, Mitsubishi S6S, Kubota V3800/WG3800
American Cummins QSF2.8T4F/QSF2.8T3
mechanical tranmission; (Other brands are available)

with working light, reversing beacons; mirrows, pneumatic tyres, seat.

①High SecurityPerformance

The whole system comes standard with intelligent start systemvehicle hanging gear start preventinaimprove safety and extend the service life of the gearbox Seat with belt,provide a more comprehensive security for the driver Overhead guard with high-strength steel plate stamping molding

②EngineExhaustingAndBraking System

Engine intake with high independent channel dust prevent at the
same time effectively enhance the engine intakeso that theengine
can burn more fully.
Cooling systemmeettherequirementsoftheChinalllstandardThe
inter-coolingscattered wateroil scatteredareindependent layout which greatly increase the engine gearbox and other core components quality.
Standard hiah-performance vacuum powerfull hydraulic Dower
brake system,effectively enhance the reliability of driving and emergencystop.

③HighPerformanceHydraulic System

Double pump combined hydraulic system,hydraulic control valve integrated active shunttechnologyimproving working efficiencyandreducingconsumption
