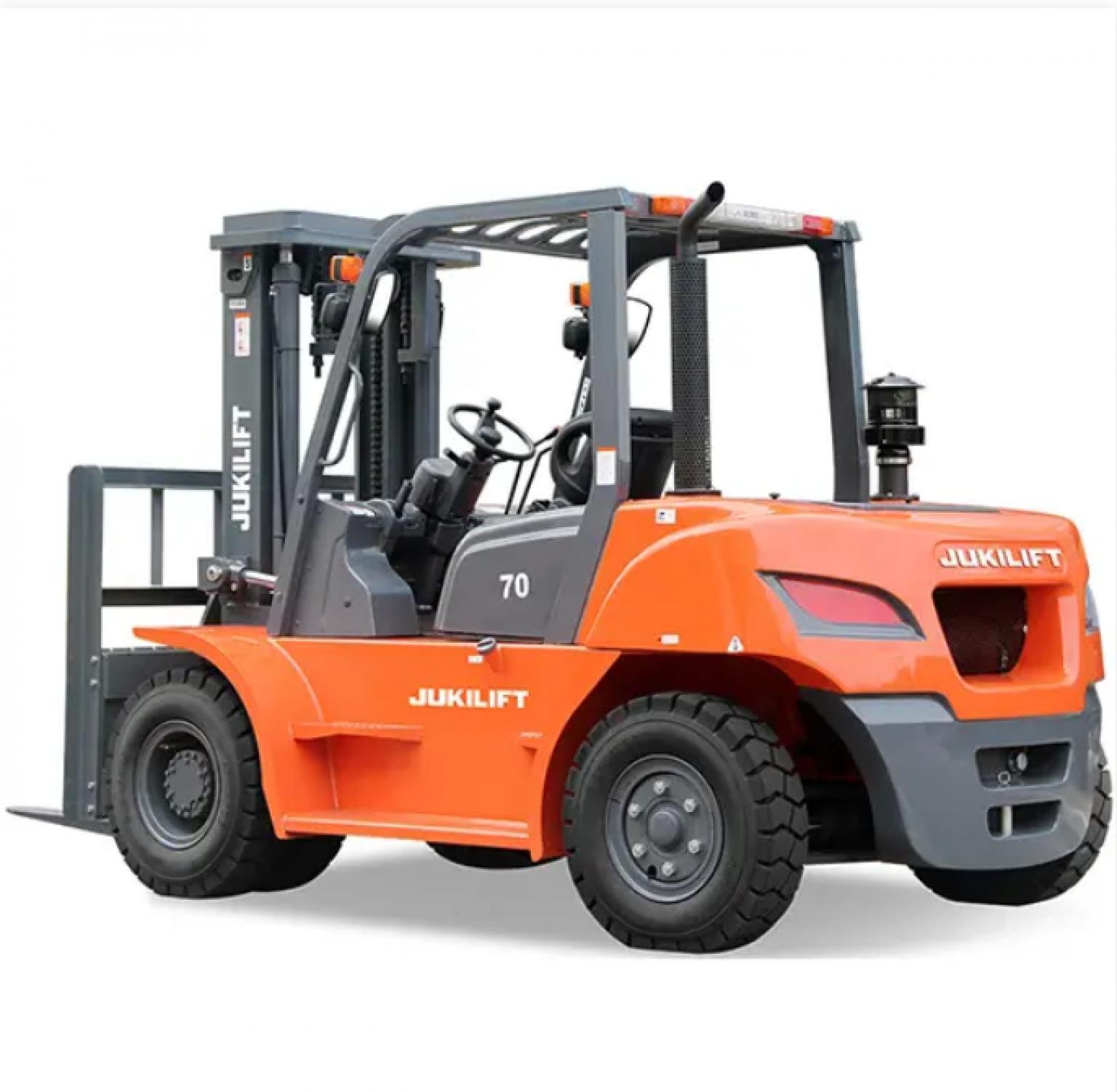

5t –12t capacity;(5.0Ton-12Ton available)

Loading Center: 600mm

Lifting Height :Wide View Full Free 2-Stage 2500mm-4000mm

Wide View Full Free 3-Stage 3700mm-6000mm

Engine：Chinese Xichai CA4DF3-12GCG3U;

Chinese Yuchai YC4A115-T300;

Japanese ISUZU 6BG1QC-02, Mitsubishi S6S-T,
American Cummins QSB4.5-C110/QSB4.5-C130
(Other brands are available)

mechanical or automatic tranmission;
with working light, reversing beacons; mirrows, pneumatic tyres, seat.

①High SecurityPerformance

Intelligent starting system,forklift hanging gear start prevent function it improves the operation safety and longer gearbox service life.

Hydraulic power brake system, large capacityaccumulatorreliable driving and emergency braking.

Overhead guard with high-strength steel plate one stampingprovide driver more sophisticated security

Standard equipped button parking brake effectively prevent the handbrake from accidentally release.

②Comfort

Ergonomic design, rational operating device layoutequipped with adjustable seats(adjustmentupto150mm)and steering wheel.
The 10t and 12t model with fork positionereasy to adjust the fork distance;The 5-8t forklift have fork positioner for option.
All forklift models standard with hydraulic steering system easy and comfort to operate.

③Reliability

Cooling system meet the requirements oftheChinalllstandard.The
inter-coolingscatteredwateroil scatteredareindependent layout
which greatly increase the engine gearbox and other core components quality.
Hydraulic system gives large-capacity oil absorption and oil return filter to ensure efficient work.
Engine standard with two-stage filter design(cyclone type filter+air dry filter).

④Advancement

World famous imported diesel and gasolineengineJapan Okamura gear box and wet drive axle for options.
IntelligentLCDinstrumentCANControllerAreaNetworkreal-time
display ofengine and forklift’s working information.
