Efficient and Precise Laboratory Staining Solution

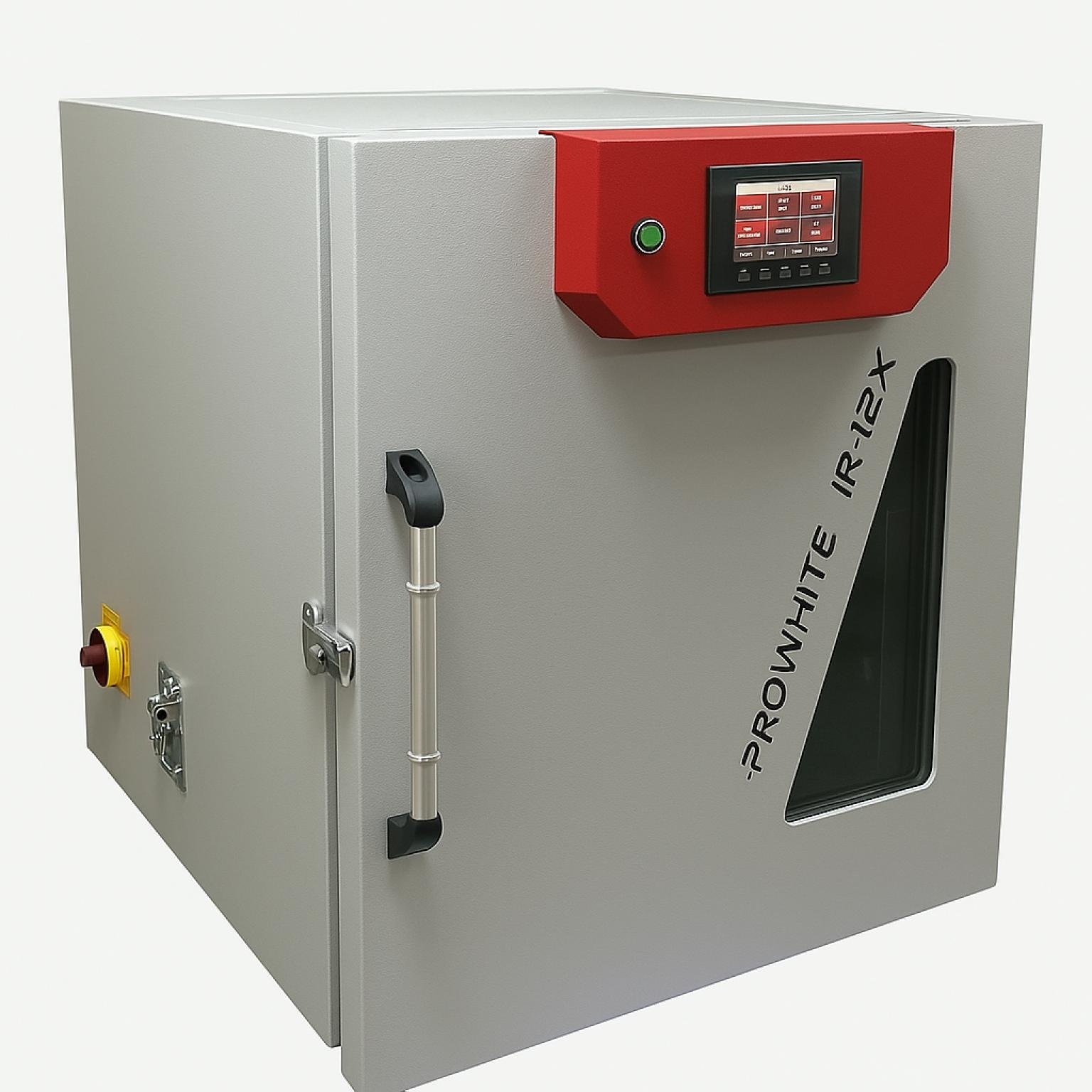

The IR Dyeing Machine , or Infrared Dyeing Machine, is designed for precise, controlled, and repeatable dyeing processes in a laboratory environment . It has 10 dye containers , each with a capacity of 160 ml . The operating temperature range is between 30°C and 135°C , with a maximum temperature of 140°C . The heating rate is adjustable between 0.5°C and 4°C/min , and it has a heating power of 1950 W. The machine's rotation speed is adjustable between 15 and 40 revolutions per minute .

Key Features

• Capacity: 10 cups, 160 ml each.
• Operating Temperature Range: 30°C – 135°C (Maximum: 140°C)
• Heating Rate: Adjustable from 0.5°C to 4°C/min.
• Heating Power: 1950 W
• Rotation Speed: 15 – 40 rpm
• Body Structure: Fully stainless steel, double-walled heat-insulated design.
• Door Design: Double-glazed insulation that minimizes heat loss.
• Heating System: Homogeneous heat distribution with special IR porcelain coated heating elements.
• Dry Running: Operates in a completely dry environment; the apparent temperature is directly the float temperature.
• Cooling System: Closed-loop water circulation air cooling system.
