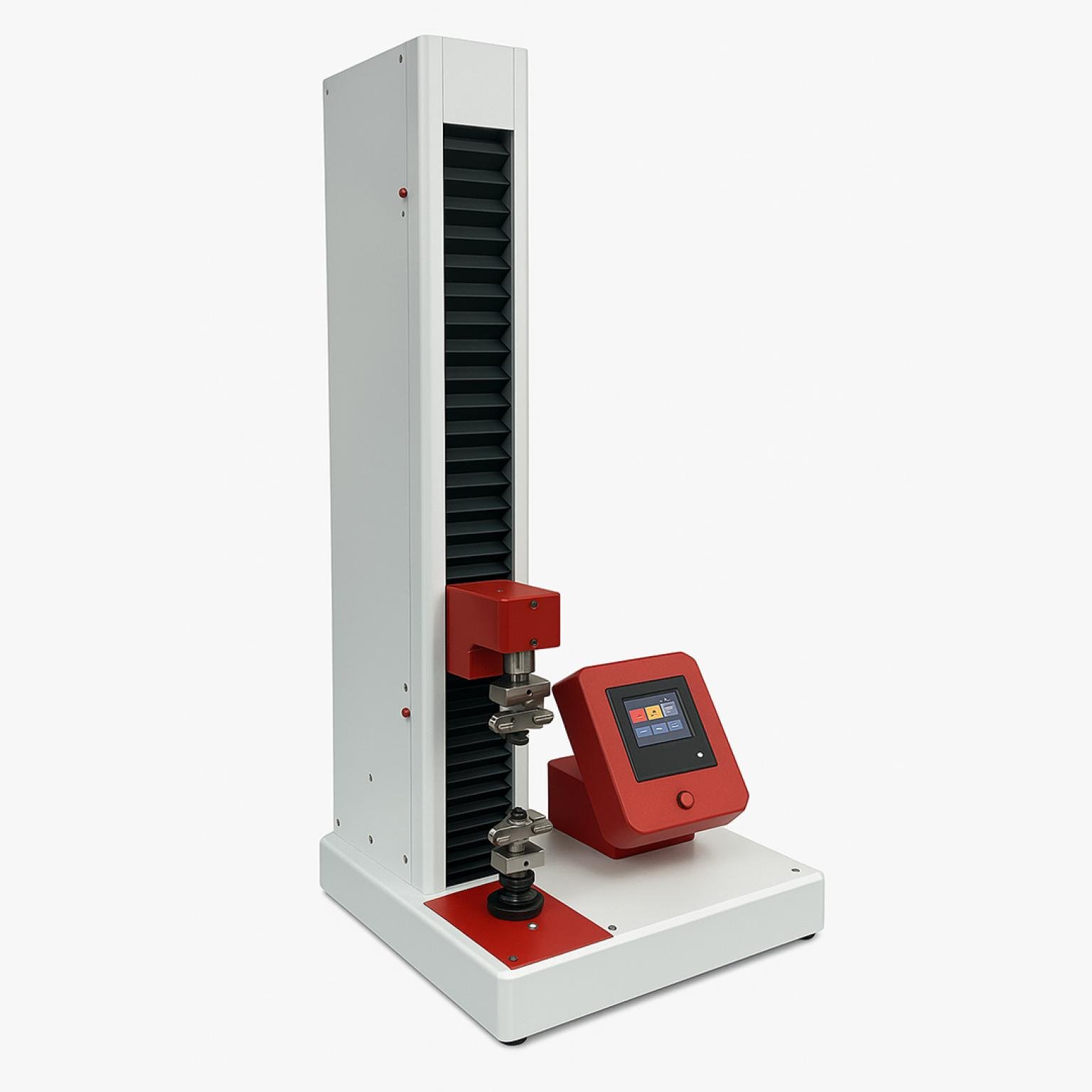

STRENGTH TESTING MACHINE – SINGLE COLUMN – 3000N MAXIMUM CAPACITY

General Description

This device is designed for measuring the tensile and separation strength of fabrics and similar materials. It has a maximum force capacity of 3 kN (3000 N) and can automatically record the maximum value applied at the moment of rupture. The sample is secured via jaws, and the results can be displayed in different units such as Newton (N) or kilogram-force (kgf). The rupture process is performed automatically by a motor system with adjustable speed.

Technical Specifications

• Maximum Force Capacity: 3000 N (3 kN)
• Accuracy: Elongation measurement 0.01 mm
• Movement Distance:
  • Standard: 720 mm
  • With pneumatic jaw: 600 mm
• Jaw Type: Includes pneumatic jaw assembly as standard.
• Force Measurement System: Electronic load cell
• Motor: Adjustable speed automatic motor
• Model Type: Single-column structure

Control and Software

• Screen: 3.5” color touchscreen
• Standalone Use: Tests can be performed directly on the screen without needing a computer.
• Connections: USB computer communication port
• Software: Comes with a free application program. The main programs and standards required for textile testing are pre-installed.
• Update: Software updates and support services are provided via remote connection.
• Computer Requirements: Minimum 2 GB RAM, 2.5 GHz processor (Computer and printer not included)
