Maximum Capacity – Touch Panel – Automatic

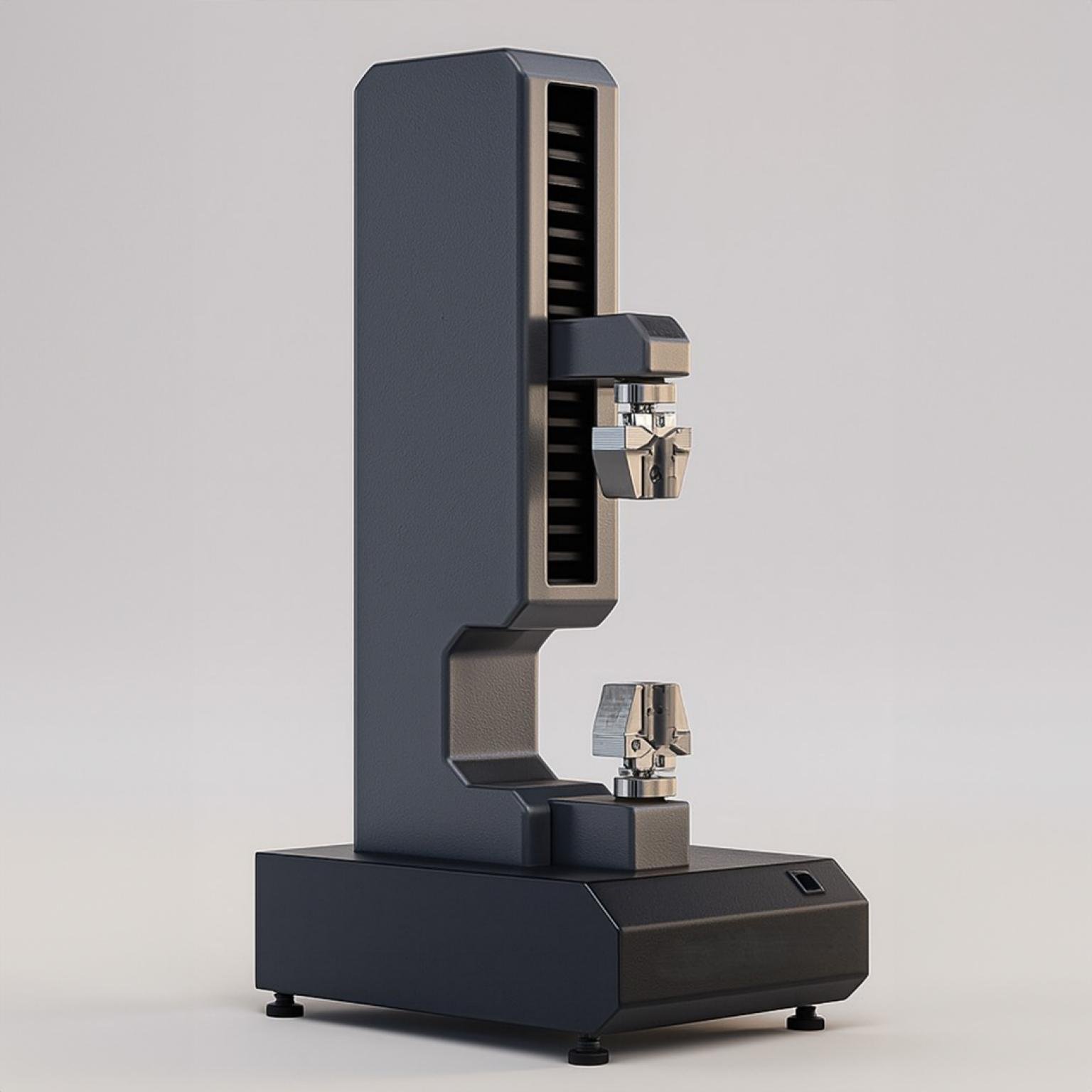

The PROWHITE Strength Testing Machine is designed to measure the tensile and separation strength of fabrics, paper, leather, and similar products. With a maximum force capacity of 300 N , the device can automatically record the maximum value applied at the moment of rupture.

The samples are secured between the jaws, and the device displays the strength values ​​in different units such as Newton (N) or kilogram-force (kgf) . The rupture process is performed by an automatic motor with adjustable speed .

Capable of measuring elongation with an accuracy of 0.01 mm , the device provides repeatable and accurate results. It is supplied as standard with a set of mechanical jaws.

Technical Specifications

• Maximum Force Capacity: 300 N
• Elongation Measurement Accuracy: 0.01 mm
• Movement Distance (excluding jaws): 250 mm (Varies depending on the jaw group used)
• Jaw Type: Includes a set of mechanical jaws as standard.
• Model Type: Single-column structure
• Force Measurement System: Electronic load cell
• Motor: Adjustable speed automatic motor
• Screen: 3.5” color touchscreen
• Usage: Can perform tests directly on the screen without needing a computer.
• Connections: Standard USB computer communication port
• Software: Optional application program (priced separately)
  • General testing methods and various standards are included.
  • New programs can be added and standard updates can be made.
• Remote Support: Software updates and technical support available.
• Computer Requirements (for optional software): Minimum 2 GB RAM, 2.5 GHz processor (Computer and printer not included)
